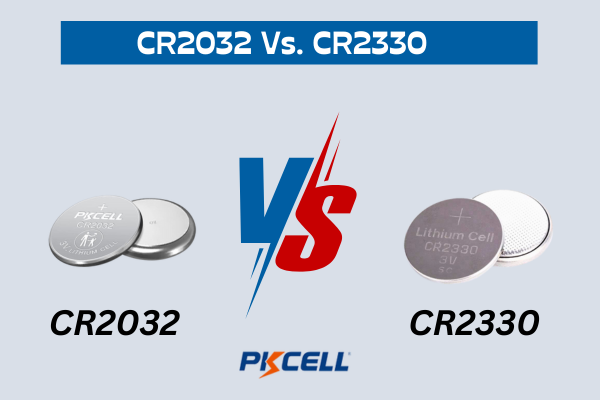

CR2330 vs CR2032: Zrozumienie różnic

Najważniejsze informacje

The CR2330 and CR2032 are both coin-cell batteries made with lithium manganese dioxide. These batteries are used in small gadgets.
Although they might look the same, these two have different sizes and powers. Because of this, you should not switch one for the other on most devices.
The CR2330 is the bigger one. Its diameter is 23mm, and its thickness is 3.0mm. The CR2032 is smaller, with a diameter of 20mm and a thickness of 3.2mm.
The CR2330 usually provides more power than the CR2032, allowing devices to work for more extended periods of time.
You should always read your device manual to determine which battery you need. This will help your device work well and prevent damage.

Wprowadzenie

Many small devices today use coin cell batteries, particularly lithium manganese dioxide batteries. Common examples include CR2330 and CR2032 from the CR series, found in remote controls, medical equipment, and various tools. While these batteries may look similar, key differences exist. Understanding these differences helps you choose the correct lithium battery, ensuring your device operates efficiently and lasts longer.

Przegląd baterii CR2330 i CR2032

CR2330 and CR2032 are two button-cell batteries that a lot of people use. These batteries are made with lithium manganese dioxide. They last for a long time. They also give you stable voltage. You will find them in many things, like remote controls, watches, car key fobs, and medical devices.

Both batteries give a voltage of 3V, which is suitable for devices that do not use much power. However, they are not the same in some main ways. These things can change which devices can use each battery. Knowing what each one can do is essential so you can pick the correct battery for what you need.

Kluczowe specyfikacje CR2330

The CR2330 battery is mostly used in remote controls and some medical devices. It stands out because it has special characteristics.

Key Features	Opis
Chemia	Lithium Manganese Dioxide (Li-MnO2), high energy density.
Napięcie	3.0V nominal, stable output.
Pojemność	255–265mAh, supports long runtime.
Wymiary	23mm diameter, 3.0mm height, compact.
Waga	~3.8g, lightweight.
Temperatura pracy	-30°C to +85°C, performs in extreme conditions.
Okres trwałości	5–10 years, low self-discharge rate.
Prąd rozładowania	Up to 0.2mA standard, supports high-rate pulse discharge.
Bez możliwości ładowania	Single-use, reliable for critical devices.

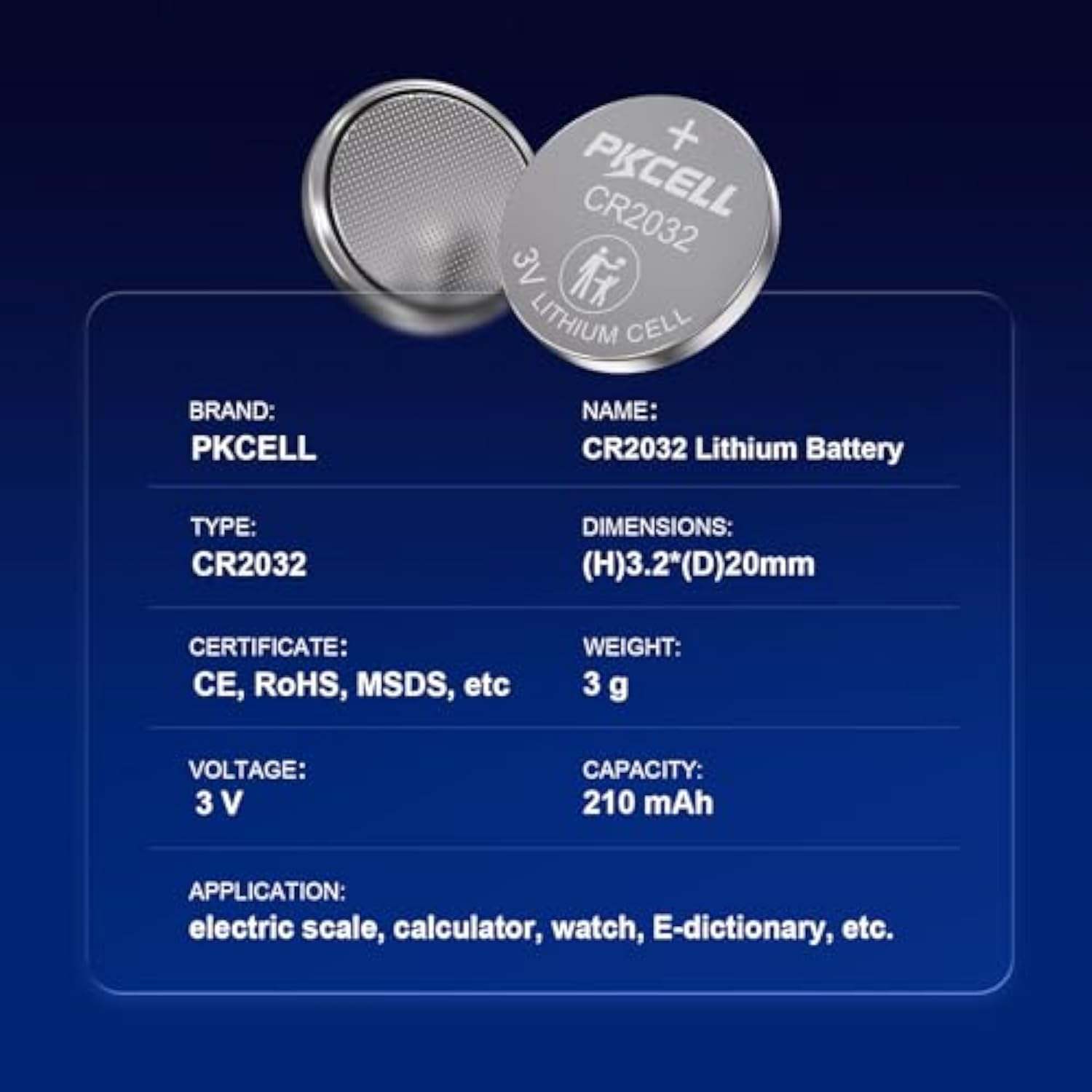

Kluczowe specyfikacje CR2032

The CR2032 battery is simple to spot. This battery can go in computer motherboards, key fobs, and calculators. It delivers a reliable 3V output, 200–240mAh capacity, and long shelf life in a compact, lightweight form, perfect for low-drain, long-term applications. Here are some features you should know about it:

Key Features	Opis
Chemia	Lithium Manganese Dioxide (Li-MnO2), high energy density.
Napięcie	3.0V nominal, stable output.
Pojemność	200–240mAh, supports extended runtime.
Wymiary	20mm diameter, 3.2mm height, compact.
Waga	~3.0g, lightweight.
Temperatura pracy	-30°C to +85°C, reliable in extreme conditions.
Okres trwałości	5–10 years, low self-discharge rate.
Prąd rozładowania	Up to 0.2mA standard, supports pulse discharge.
Bez możliwości ładowania	Single-use, suited for critical devices.

Key Differences Between CR2330 and CR2032

CR2330 batteries are larger with higher capacity, ideal for devices needing longer runtime, like key fobs. CR2032 batteries are smaller and suited for compact devices, like watches.

Cecha	CR2330	CR2032
Size (Diameter x Thickness)	23mm x 3.0mm	20mm x 3.2mm
Pojemność (mAh)	270–300	220–240
Napięcie	3V	3V
Waga	~4g	~3g
Zastosowania	Remote controls, medical devices, and key fobs	Watches, calculators, car keys, motherboards
Interchangeability	Not interchangeable due to size	Not interchangeable due to size

Wnioski

To sum it up, knowing that CR2330 and CR2032 batteries are different is really helpful! This understanding will make it easier for you to choose the right battery for your devices. Each type of battery has its own unique features and is compatible with different devices. Always using the right battery is important for your device’s performance. When you grasp the differences in voltage and size, you’ll be able to make even better choices. So, next time you’re looking for a new battery, be sure to check this guide to find the perfect one for your needs. If you have any questions about CR2330 and CR2032 batteries, feel free to contact pkcell for more information!

Dlaczego warto wybrać Pkcell?

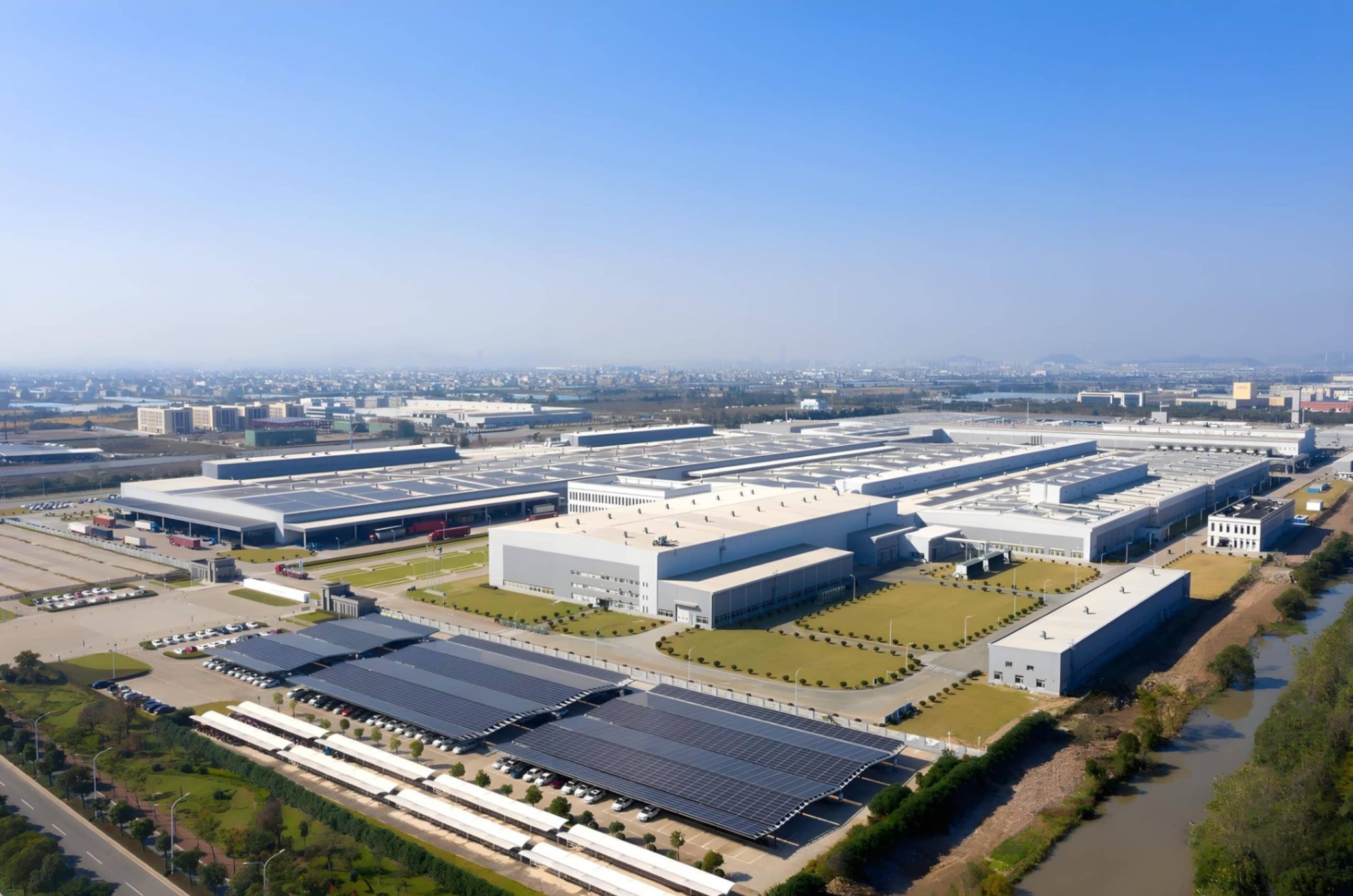

Pkcell began in 1998. It is one of the top battery makers in China. The company is known for good and new power solutions. Their factory is very big, about 28,000 square meters. A team of more than 50 people works on research and development at this place. They sell good batteries to customers in over 100 countries.

We have many kinds of batteries for you. You can get alkaline, carbon-zinc, button cells, Li-SOCl2, Li-MnO2, and rechargeable NiMH or NiCd batteries. We also sell lithium-ion batteries and battery packs. These batteries are used in several areas. They help in security, medical devices, smart homes, and consumer electronics.

Często zadawane pytania

Czy CR2330 może być używany zamiast CR2032?

No, you cannot use a CR2330 battery in place of a CR2032 battery. Both batteries have the same voltage, but they are not the same in thickness and diameter. A CR2330 is bigger than a CR2032, so it will not fit in the same space. If you try to put a CR2330 where a CR2032 should be, you might break your device or the battery, which can make the battery not work right.

Czy baterie CR2330 i CR2032 są wymienne w większości urządzeń?

No, CR2330 and CR2032 batteries do not work in most of the same devices. This is because they are not the same size. The size impacts how the batteries fit and work. Each one is made for devices with specific measurements. So, you usually cannot swap them out and use one instead of the other.
